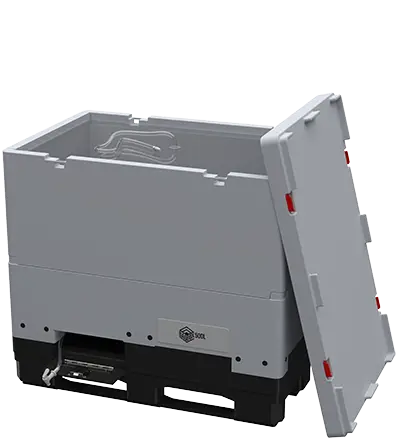

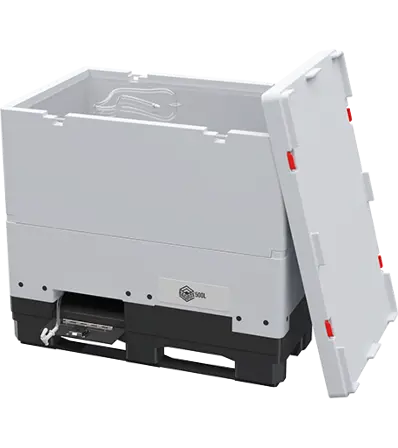

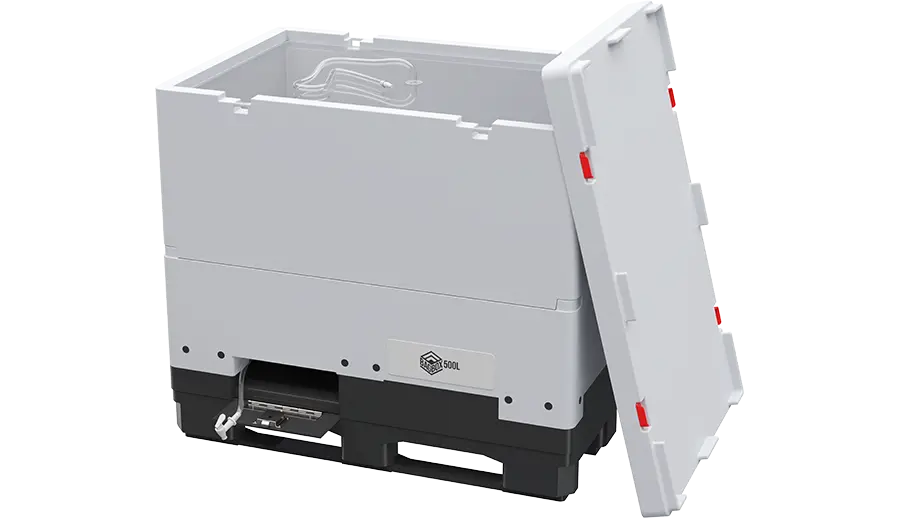

The BagBox 500L transport tote is built for secure, high-volume movement of bioprocess fluids in biopharmaceutical and biotech production workflows.
At 500 litres it balances capacity against manoeuvrability, holding a substantial batch while remaining practical to move through a facility. A lockable drain door and a raised tube storage compartment keep the discharge point secure and the tubing protected from snagging or interference in transit. The collapsible frame folds from 1070 mm down to 580 mm when empty, which more than halves the return-freight volume across a fleet. Rated to 4200 kg static and 1260 kg dynamic, with smooth surfaces that wipe clean and resist the chemicals used in routine GMP procedures.
Key Features:
- 500L capacity for mid-to-large batch transport and shipping
- Lockable drain door with raised tube storage compartment
- Compatible with 3D single-use bag systems from all major suppliers
- Collapsible to 580 mm and stackable four high when static
- Rated to 4200 kg static and 1260 kg dynamic load
Applications:
- Transport of pharmaceutical and biotech fluids
- Fluid movement between cleanroom and production zones
- Secure logistics for larger batch volumes
- Shipping between facilities at high volume
The 500L Transport Tote can be customised to fit specific process requirements, from drainage port position through to door configuration and branding. It sits toward the upper end of a range running from 50L to 1500L, and where the standard range does not fit your bag system or facility layout, our engineering team will design a variant that does.
